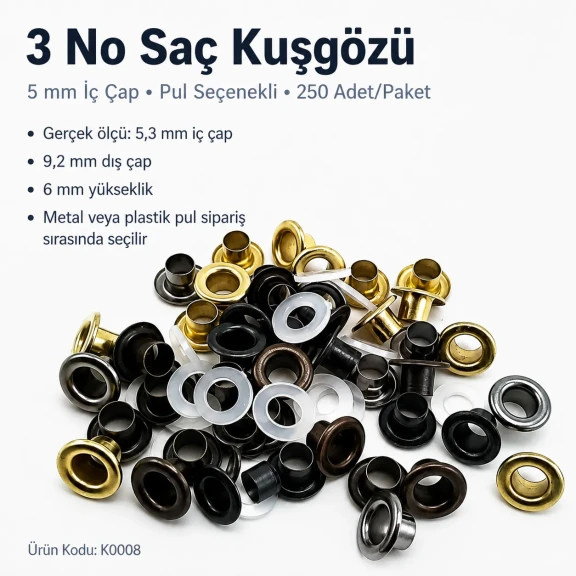

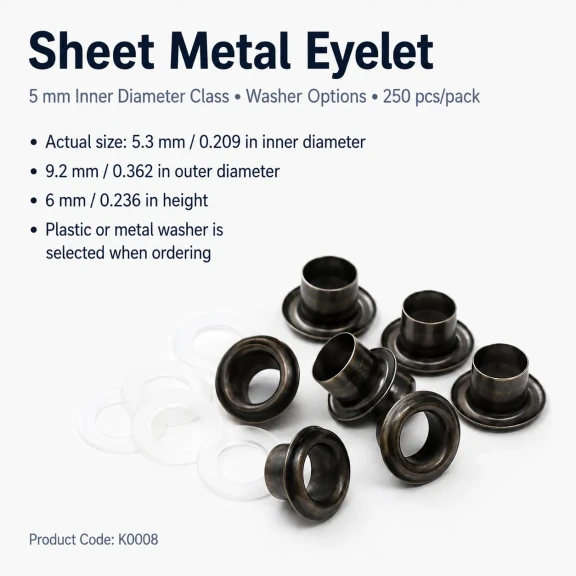

Steel Eyelet 5.3 mm / 0.209 in Inner Diameter with Plastic or Metal Washer Options 250 Pieces K0008

Compact Steel Eyelet for Footwear, Bags and Garments

This steel sheet eyelet is designed to provide a neat metal finish around small openings on footwear, garments, bags, leather goods, tags, cardboard items and suitable craft materials.

The 5.3 mm / 0.209 in inner opening supports thin lace, cord and fastening applications. Its 9.2 mm / 0.362 in outer diameter covers the prepared hole edge, while the 6 mm / 0.236 in barrel is formed over the selected washer during installation.

The economical steel construction and multiple finish options make it suitable for footwear manufacturers, bag workshops, garment producers, leather-accessory makers, tag manufacturers and craft users.

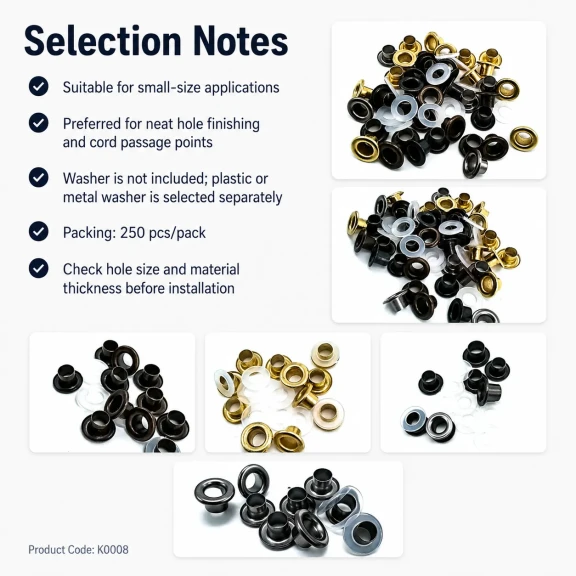

When Should This Eyelet Be Selected?

• When an eyelet in the 5–5.5 mm / 0.197–0.217 in inner-diameter class is required
• For thin lace or cord passage points
• For small shoe-lace openings
• For bags, wallets and leather accessories
• For garments, tags, sample cards and cardboard applications

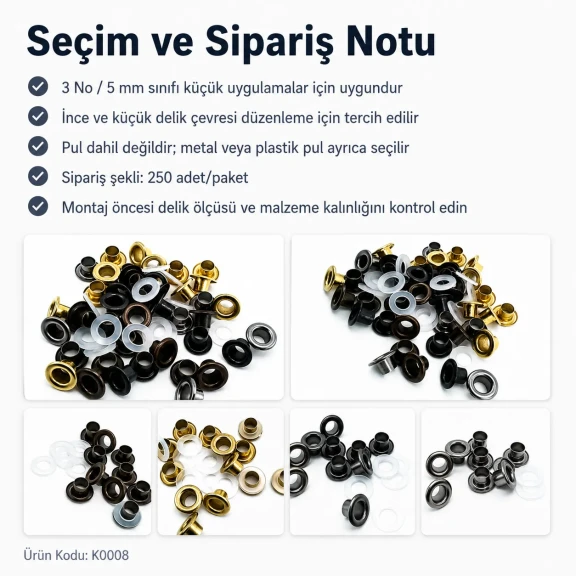

• When a plastic or metal washer option is required
• When a workshop pack of 250 eyelets is suitable

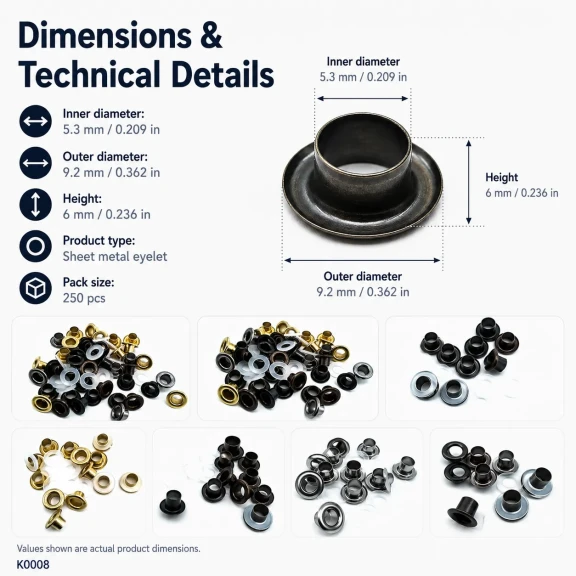

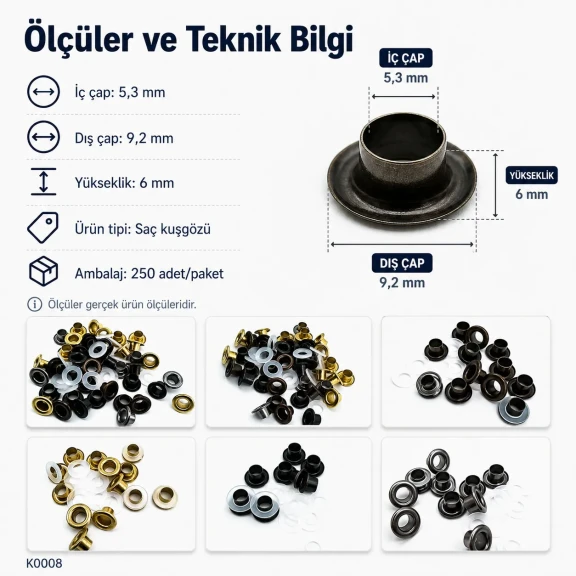

Measurements and Compatibility

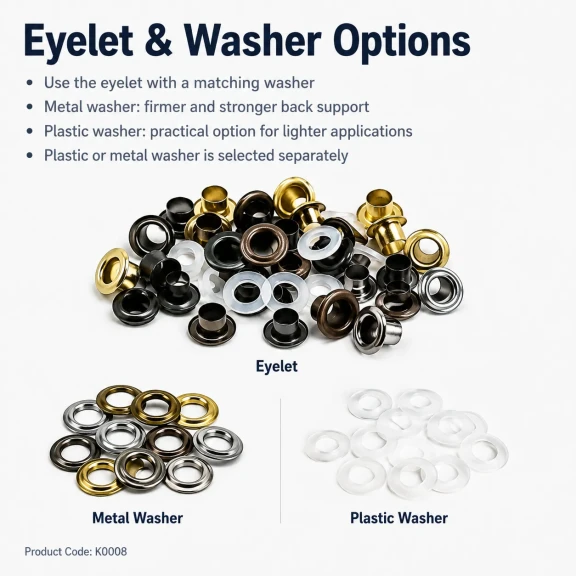

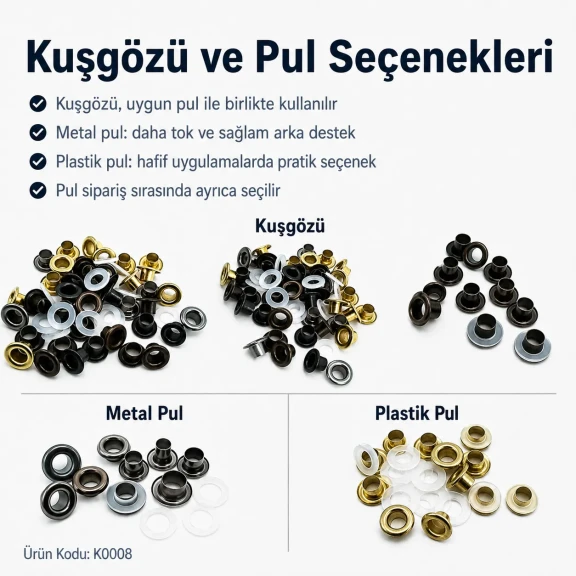

Plastic Washer or Metal Washer?

Plastic washer option

A plastic washer can be considered when a lighter and softer rear support is preferred for suitable garments, textiles, tags or accessory applications.

Metal washer option

A metal washer may be selected when an all-metal connection and a conventional metal rear finish are preferred for footwear, bags, leather accessories and similar applications.

How Does It Differ from Brass and Stainless-Steel Eyelets?

Steel sheet eyelets offer an economical metal solution for standard garment, footwear, bag, tag and craft applications. Different finishes allow the eyelet to be matched with light, dark, gold-tone or antique-style products.

Brass eyelets have different material and forming characteristics. Stainless-steel eyelets should be considered when resistance to moisture, repeated washing or demanding outdoor conditions is a primary requirement.

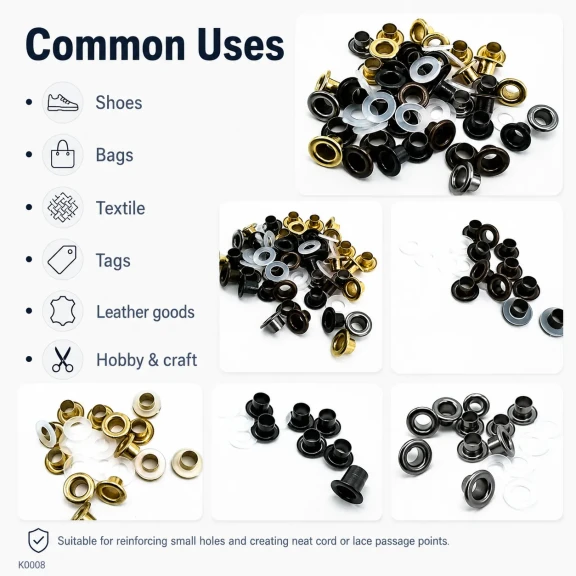

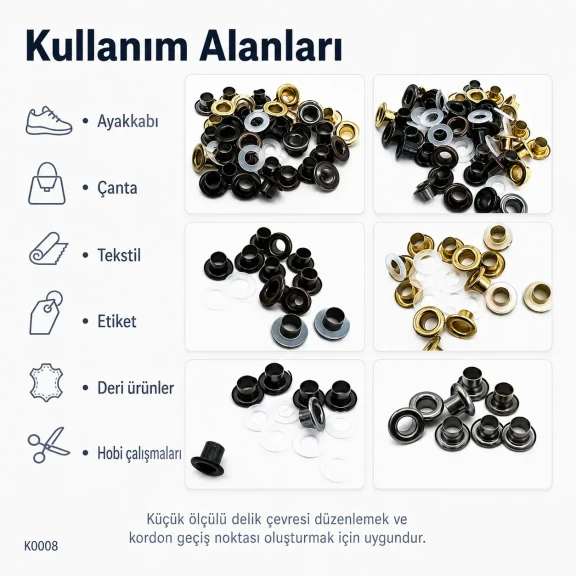

Typical Applications

• Shoe-lace openings
• Shirts, blouses, workwear and knitted garments
• Denim shirts and casual clothing
• Baby and children’s garment accessories
• Bags, wallets and small carrying cases
• Leather and faux-leather accessories
• Thin cord and lace openings
• Tags, sample cards, cardboard and packaging
• Craft and decorative textile projects

Compatible Setting and Punching Dies

Use a compatible setting die for standard eyelets in the 5–5.6 mm / 0.197–0.220 in inner-diameter class to form the barrel evenly over the selected washer.

A separate 5 mm / 0.197 in punching die can be used to prepare the installation hole. Material thickness, stretch and the number of layers may affect the final hole requirement, so a sample test is recommended.

• Setting die for 5–5.6 mm / 0.197–0.220 in inner-diameter eyelets
• 5 mm / 0.197 in eyelet punching die
• Grommet dies and setting tools
• Steel eyelets
• Eyelets and grommets

Installation Steps

1. Mark the required eyelet position.
2. Check the material thickness and number of layers.
3. Prepare a controlled opening with the compatible punching die.
4. Insert the eyelet through the front of the material.
5. Position the selected plastic or metal washer on the rear side.
6. Centre the eyelet and washer in the compatible setting die.
7. Apply the press gradually and evenly.
8. Check that the barrel is formed evenly over the washer.

Selection and Installation Warnings

• Do not interpret the product as having a 10 mm / 0.394 in inner diameter.
• Use the verified 5.3 mm / 0.209 in inner diameter when selecting cords and dies.
• Check the 9.2 mm / 0.362 in outer diameter and 6 mm / 0.236 in barrel height.
• Do not prepare an opening larger than required.
• Keep the eyelet and washer centred in the setting die.
• Do not operate the setting die at an angle.
• Avoid excessive pressure that may crush the eyelet or damage the surface.
• Perform a sample installation before starting full production.

Package Contents

• 250 steel sheet eyelets

The plastic or metal washer type is selected through the product options. The setting die, punching die, press and other equipment are not included.

Frequently Asked Questions
