Eyelet Setting Die for 6 mm / 0.24 in Inner Diameter Eyelets KLP0004

Eyelet Setting Die for 6 mm / 0.24 in Inner Diameter Eyelets

This eyelet setting die is designed for standard eyelets in the 6 mm / 0.24 in inner diameter group. It is suitable for eyelet installation on textile, leather, faux leather, bags, footwear, tarpaulin, accessories, hangtags, sample cards, craft projects and workshop applications.

Standard Eyelet Setting Die

This product is a classic eyelet setting die used to install eyelets onto a prepared surface. It is not a self-punching die. If the application requires a prepared hole, a suitable punching die or hole cutter can be selected separately according to the material and eyelet structure.

Tolerance for the 6 mm / 0.24 in Inner Diameter Group

Standard eyelets in this product group may have small inner diameter differences depending on the eyelet form and production structure. Close values such as 6 mm / 0.24 in, 6.4 mm / 0.25 in, 6.5 mm / 0.26 in and 6.6 mm / 0.26 in can usually be tolerated by this die in practical use within the standard eyelet group.

Approx. 12 mm / 0.47 in Outer Diameter Product Group

This product can be evaluated with standard eyelets in the approximately 11.2 mm / 0.44 in - 12 mm / 0.47 in outer diameter group. Eyelet form, washer type, eyelet height, material thickness and machine connection should be checked before production use.

Standard Use and Professional Production

This die offers a practical solution for standard use, sample making, craft work and workshop applications. For high-volume production, precision work, special eyelet forms, coated materials or applications requiring a consistent production standard, a product-specific setting die is recommended.

Related Product and Category Links

For compatible product groups, review eyelets and grommets, brass eyelets, stainless steel eyelets, eyelet dies and setting tools and hand press machine.

Hole Preparation and Setting Process

Eyelet installation may require a prepared hole before setting. For hole preparation, suitable punching dies or hole cutters can be selected according to the material and eyelet structure. This die is used in the setting step to secure the eyelet and washer to the material.

Applications

• Textile and garment accessories
• Bags, cases and leather goods
• Leather and faux leather applications
• Footwear and lace hole applications
• Tarpaulin, canvas and technical textile details
• Hangtags, sample cards and promotional items

Compatible Tools and Machines

This eyelet setting die can be used with a compatible hand press, impact hand press, electric setting machine or pneumatic machine when the connection standard matches. Available connection options can be selected according to the press or machine.

Not included: Eyelets, washers, presses, machines, punching tools and converter adapters are sold separately.

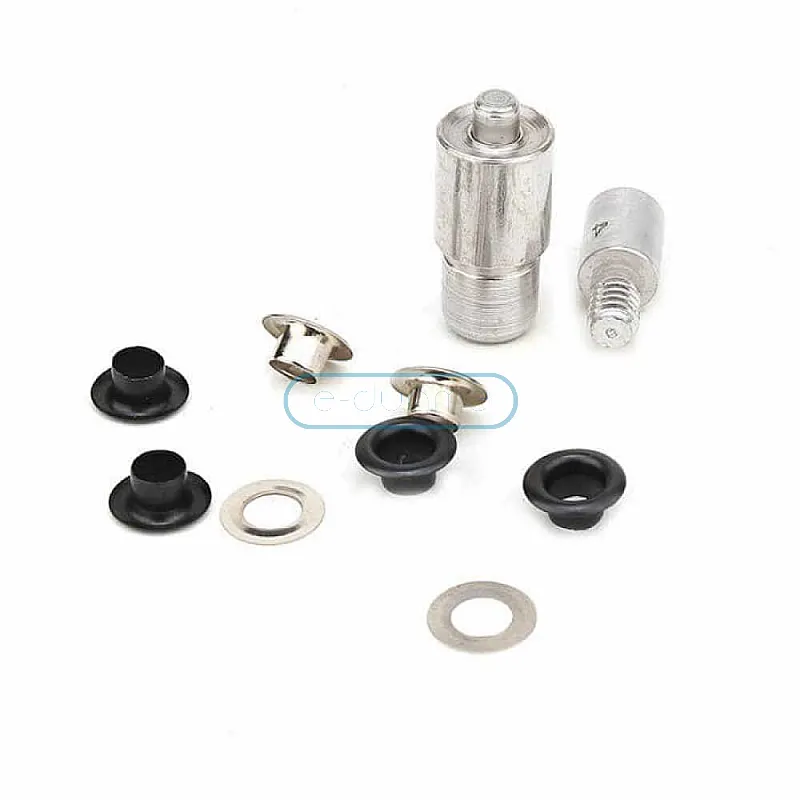

Package Contents

• 1 upper die
• 1 lower die
• Total: 1 eyelet setting die set

Before Ordering

Select this die for standard eyelets within the 6 mm / 0.24 in inner diameter group. Eyelet inner diameter, outer diameter, height, washer structure, material thickness and machine connection should be checked before use. A sample test on the final material is recommended before serial production.

Frequently Asked Questions

Which eyelets are compatible?

Standard eyelets in the 6 mm / 0.24 in inner diameter group can be evaluated with this die.

Can it tolerate small size differences?

Yes. Close inner diameter values such as 6 mm / 0.24 in to 6.6 mm / 0.26 in can usually be tolerated in practical use within the standard eyelet group.

What does 12 mm / 0.47 in mean?

It refers to the approximate outer diameter / capsule product group, not the inner diameter.

Is this a self-punching die?

No. This is a classic eyelet setting die. A separate punching die or hole cutter can be selected for hole preparation when needed.

What is included in the package?

The package includes 1 upper die and 1 lower die.
