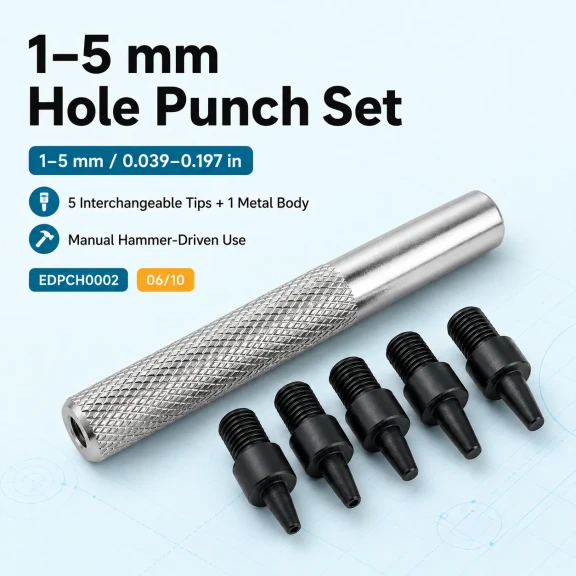

Hole Punch Set with 1–5 mm / 0.039–0.197 in Interchangeable Tips EDPCH0002

Manual Hole Punch Set with Five Interchangeable Tips

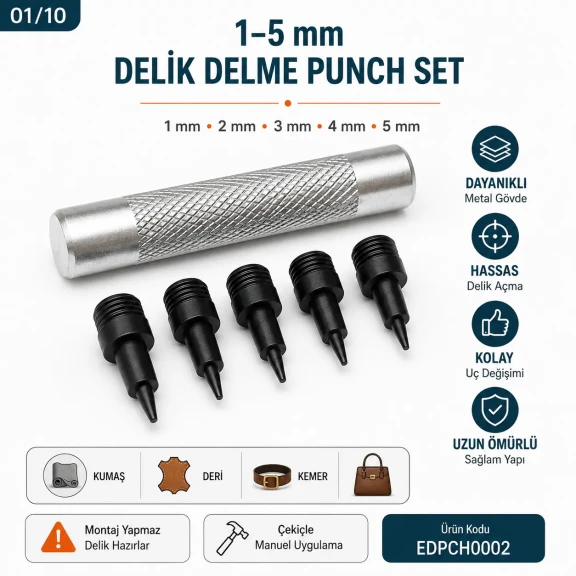

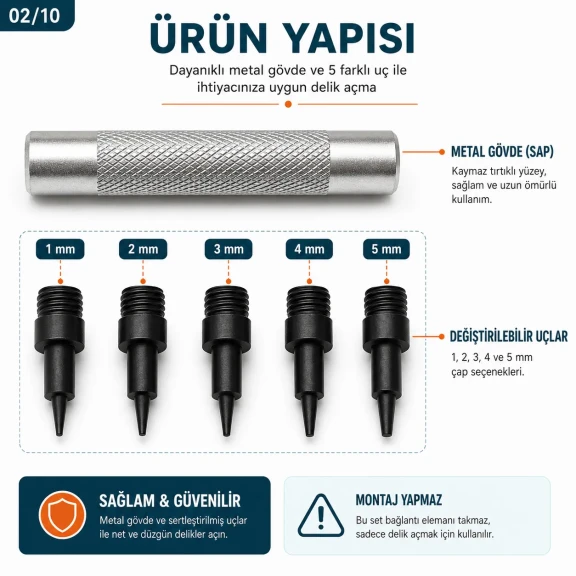

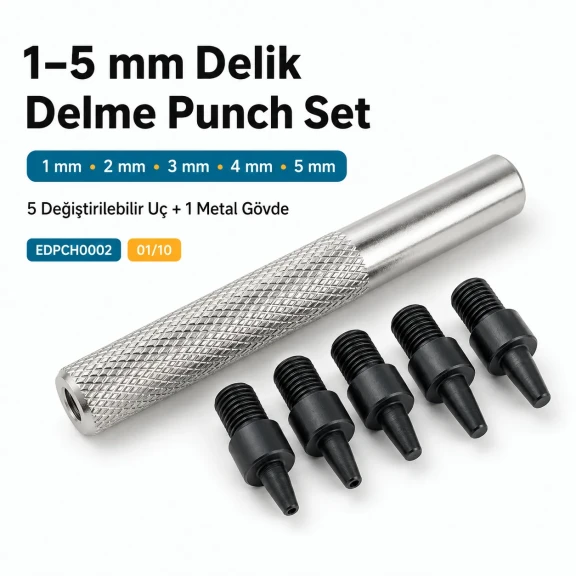

This manual punch set is designed to prepare controlled circular holes before accessory installation. The package contains five interchangeable tips measuring 1 mm / 0.039 in, 2 mm / 0.079 in, 3 mm / 0.118 in, 4 mm / 0.157 in and 5 mm / 0.197 in, together with one knurled metal holder.

The five-tip construction helps users prepare different hole diameters for fabric, canvas, felt, faux leather, suitable thin leather, belts, bags, footwear components, tags and craft projects.

Package Contents

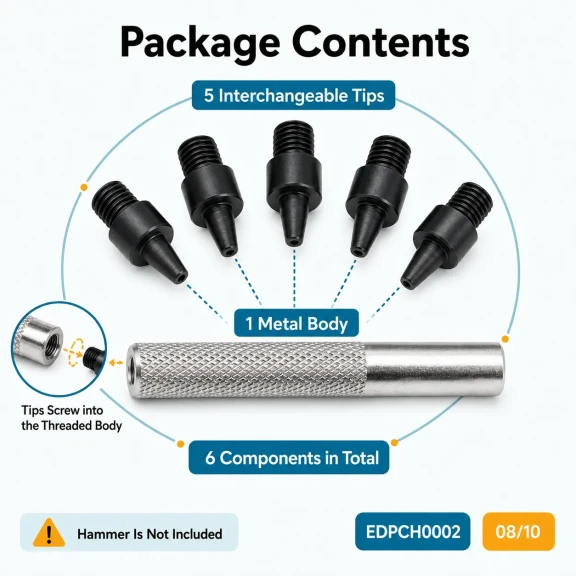

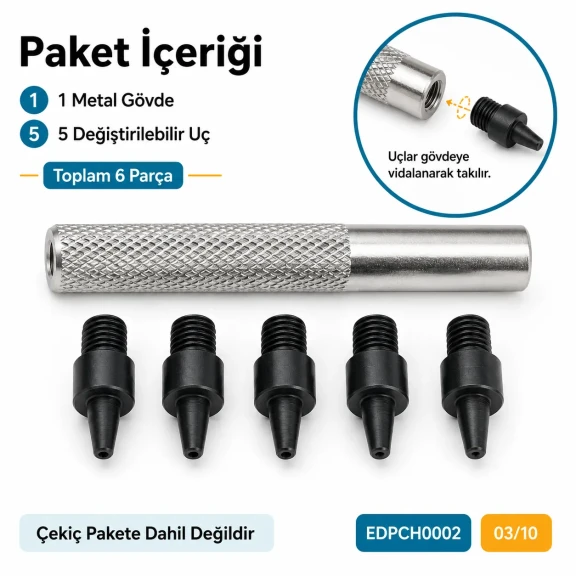

Total package contents: five interchangeable punch tips and one metal holder, providing six physical components.

Technical Information

Choosing the Correct Cutting Diameter

Do not select the cutting diameter from the visible cap diameter of an eyelet, snap or rivet. For eyelets, check the outside diameter of the barrel passing through the material. For rivets, check the post diameter. For snap fasteners, check the component that passes through the material.

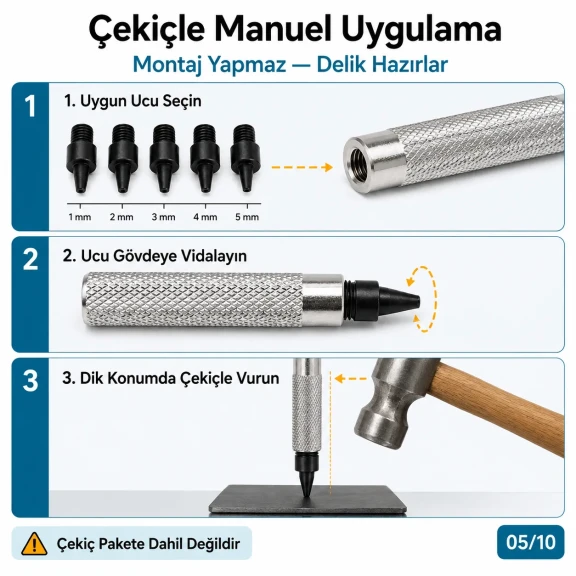

How to Use the Punch Set

1. Mark the required hole position.
2. Measure the component that will pass through the material.
3. Select the appropriate punch tip.
4. Fit the selected tip securely to the metal holder.
5. Place the material over a suitable cutting block.
6. Position the tip vertically over the marked point.
7. Apply a controlled vertical hammer strike.
8. Inspect the hole and repeat with another controlled strike if required.
9. Clean the tip after use and store it dry.

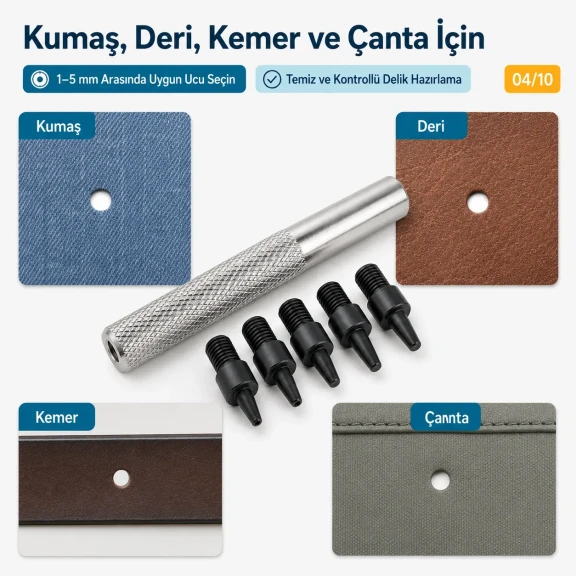

Compatible Materials

• Fabric and woven textiles
• Canvas
• Felt
• Faux leather
• Suitable thin leather
• Belts and straps
• Bag components
• Footwear components
• Card labels and sample cards
• Craft materials

Test very thick, hardened, reinforced or multi-layer materials before regular use.

Difference From the Larger Punch Set

This model covers 1–5 mm / 0.039–0.197 in cutting diameters. For larger holes, review the 6 mm / 0.236 in, 7 mm / 0.276 in, 8 mm / 0.315 in, 9 mm / 0.354 in and 12 mm / 0.472 in hole punch set EDPCH0001.

Products Not Included

• Hammer
• Cutting block
• Eyelets and washers
• Snap fasteners
• Rivets
• Setting dies
• Press machine

Frequently Asked Questions

Which cutting diameters are included?

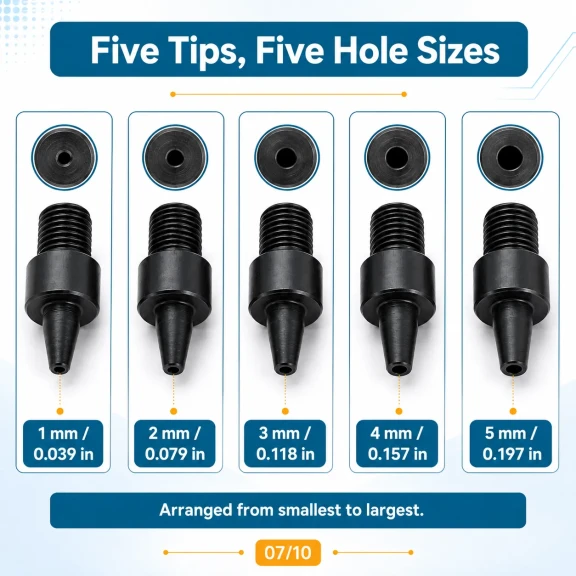

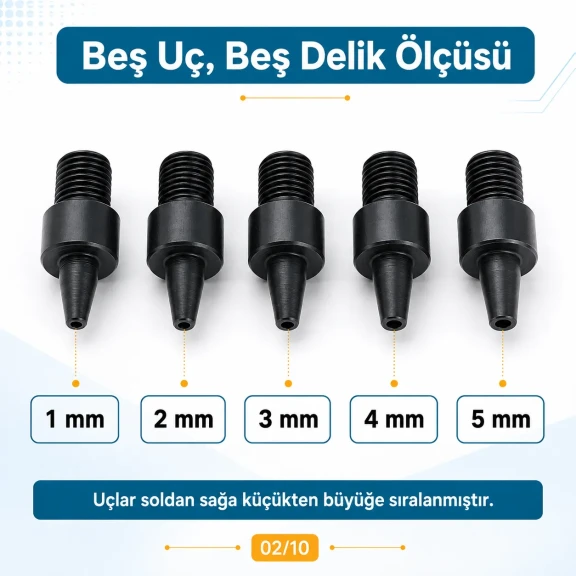

The package contains 1 mm / 0.039 in, 2 mm / 0.079 in, 3 mm / 0.118 in, 4 mm / 0.157 in and 5 mm / 0.197 in tips.

How many physical components are supplied?

Five punch tips and one metal holder are supplied, providing six physical components.

Does the tool install eyelets?

The tool prepares the installation hole only. Eyelet installation requires a separate setting die.

Is a hammer included?

A hammer and cutting block must be obtained separately.

Can it be used on belts?

It can prepare 1–5 mm / 0.039–0.197 in holes when the belt material is suitable for manual punching.

Can it be used on fabric?

It can be used on compatible fabric, canvas and felt. Test elastic or loosely woven fabric before regular work.

Can it cut thick leather?

Performance depends on the leather thickness, hardness, cutting block and applied force. Test thick or hardened leather before regular use.

Are the tips interchangeable?

All five tips are designed to be fitted individually to the same metal holder.

Can the tips be used in a press?

This set is intended for manual hammer use. Do not fit the tips to a press or machine unless mechanical compatibility has been verified.
