4 mm / 0.16 in Hole Cutter for Fine Leather, Fabric and Eyelet Hole Preparation PDV00040DEL

4 mm / 0.16 in Hole Cutter for Fine Leather, Fabric and Eyelet Hole Preparation

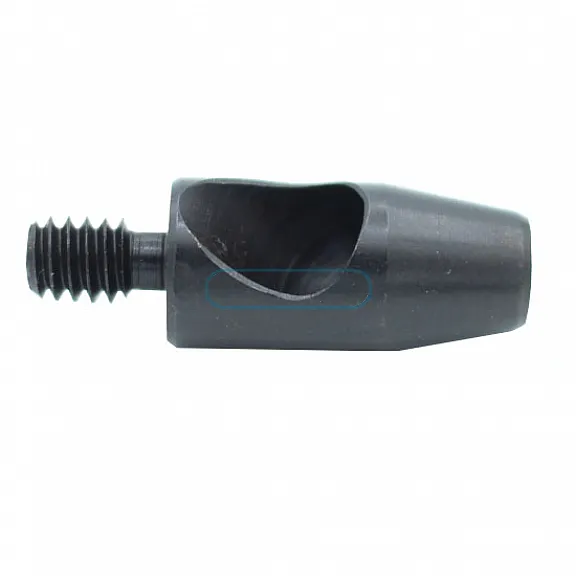

This 4 mm / 0.16 in hole cutter is a cutting tool used for preparing small holes on fine leather, synthetic leather, fabric, cardboard, bags, belts and textile accessories. It is designed for pre-cutting the hole before installing compatible eyelets or other textile hardware that requires a 4 mm / 0.16 in opening.

Used Before Eyelet Setting

This product is not an eyelet setting die. It is used before the setting process to prepare the hole in the material. A correctly prepared hole helps the eyelet parts sit more consistently on the fabric or leather surface and supports a more controlled setting process.

For 2 No / 4 mm - 4.3 mm Eyelet Hole Preparation

This hole cutter can also be used for hole preparation before setting 2 No eyelets with an approximate 4 mm - 4.3 mm / 0.16 in - 0.17 in inner diameter group. Eyelet dimensions may vary by model, supplier, inner diameter, outside diameter, height and washer structure, so the actual eyelet size should be checked before ordering.

Dimensional Tolerance and Material Thickness

Hole diameter, eyelet inner diameter, material thickness, material stretch, setting die fit and press pressure should be evaluated together. Small dimensional differences may be tolerated by the setting tool in some thin and medium-weight materials. On thick fabrics, tarpaulin, multi-layer leather or rigid materials, this tolerance is reduced. A sample test is recommended before serial production.

Applications for Fine Leather, Fabric, Cardboard, Bags and Belts

This cutter can be used for fine leatherwork, synthetic leather, fabric production, bag making, belt holes, cardboard products, textile accessories, craft projects, sample preparation and hole preparation before eyelet setting. The final hole quality may vary depending on material density, thickness and cutting support.

SEO-Focused Related Product and Category Links

For related installation tools, review fastening tools and dies. For compatible hardware groups, visit eyelets and grommets. For the setting stage after hole preparation, review eyelet setting dies. For controlled manual application, review the hand press machine.

Usage Information

The hole cutter should be used with a suitable lower base or cutting support. For a cleaner cut, the material should be positioned securely, the cutter should be aligned vertically and appropriate pressure should be applied. On hard or thick materials, the cutting edge should not be forced and should be checked regularly.

Package Contents

• 1 hole cutter, 4 mm / 0.16 in
• 1 lower base
• Total: 1 hole cutting tool set

Application Areas

• Hole preparation before setting 2 No / 4 mm - 4.3 mm eyelets
• Fine leather and synthetic leather applications
• Fabric, canvas and textile surfaces
• Bag, belt, wallet and accessory production
• Cardboard, craft and handmade projects
• Sample making and workshop use

Before Ordering

The hole size should be selected according to the eyelet or accessory to be installed. If it will be used for 2 No / 4 mm - 4.3 mm eyelets, the actual eyelet inner diameter, outside diameter, height, material thickness and setting die compatibility should be checked together. Thin materials may allow more tolerance, while thick fabrics, multi-layer leather and rigid materials reduce tolerance.

Not included: Eyelets, eyelet setting dies, presses, hand tools, cutting boards, converter adapters and other auxiliary equipment are not included.

Frequently Asked Questions

What is this product used for?

It is used to cut 4 mm / 0.16 in holes on fine leather, fabric, cardboard and similar materials.

Does this tool set eyelets?

No. This is not an eyelet setting die. It is used for hole preparation before eyelet setting.

Can it be used for 2 No eyelets?

It can be used for hole preparation before setting 2 No eyelets in the approximate 4 mm - 4.3 mm / 0.16 in - 0.17 in inner diameter group. The actual eyelet size, material thickness and setting die fit should be checked.

Does tolerance change on thick fabrics?

Yes. Tolerance is reduced on thick fabrics, multi-layer leather and rigid materials. A sample test is recommended before production use.

What is included in the package?

The package includes 1 hole cutter and 1 lower base.
