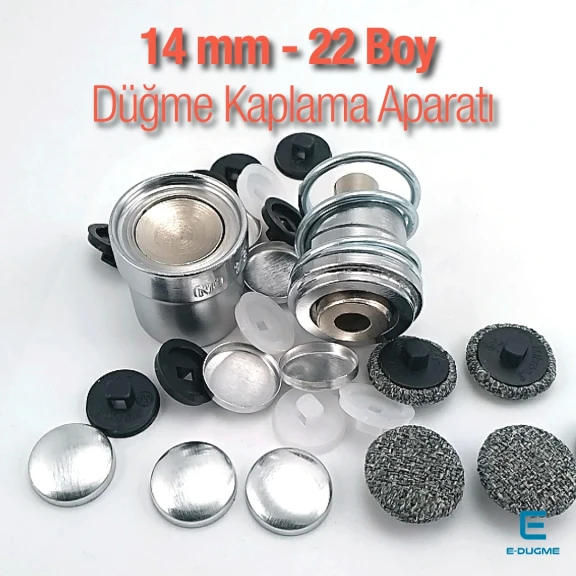

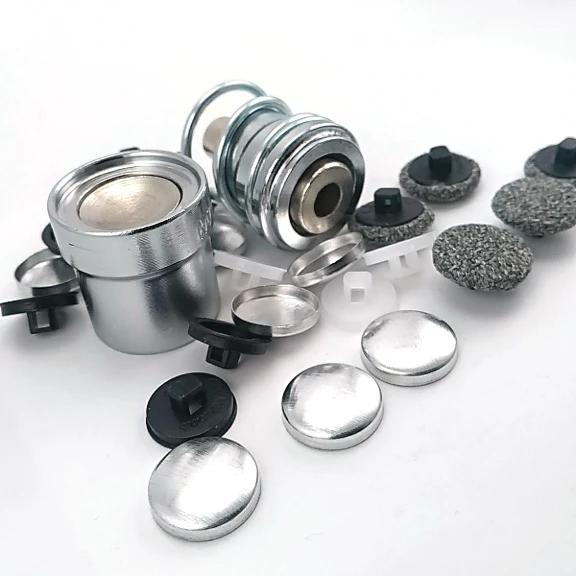

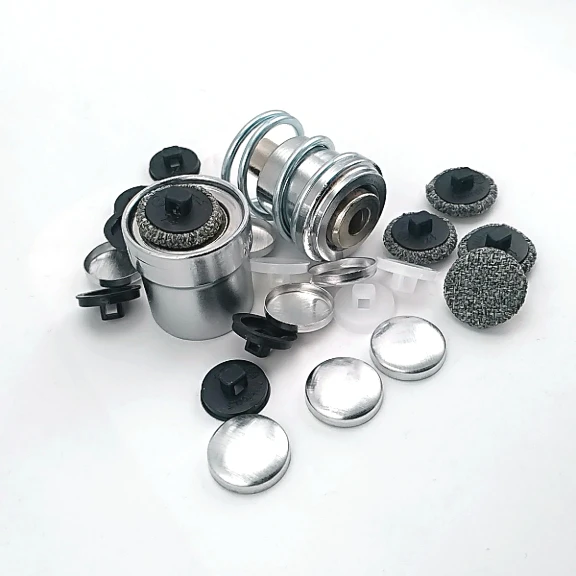

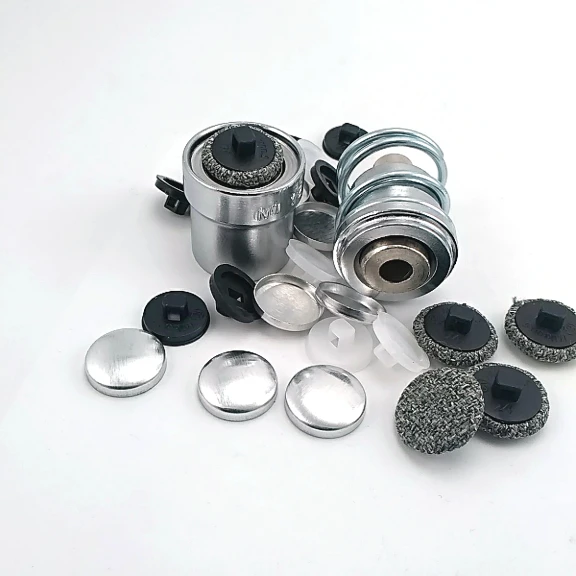

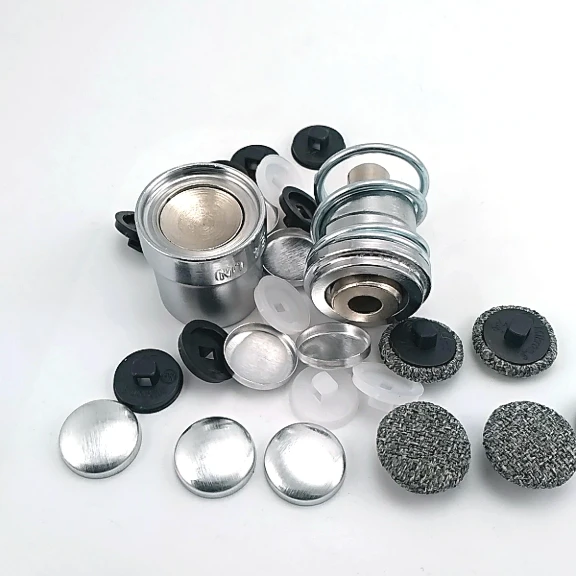

22L / 14 mm / 0.55 in Fabric Button Covering Die for Shank Buttons and Snap Caps KLP0022KPL

What Is a 22L Fabric Button Covering Die Used For?

This 22L Fabric Button Covering Die is used during the fabric-covering stage of compatible shank buttons and compatible fabric-covered snap caps. It helps fabric sit more evenly around the visible face, supporting cleaner edge closure, controlled fabric tension and more consistent results in tailoring, garment production and workshop applications.

This product is a covering die, not a finished button, a snap fastener or a final Snap Setting Die. It prepares the visible fabric-covered component before the final fastening method is completed.

Two Fabric-Covering Uses

• Fabric-covered shank buttons: The covered component is used as a sew-on button through the shank on its reverse side.
• Fabric-covered snap caps: The outer cap is covered with fabric first. It is then joined to compatible socket and snap components with a separate Snap Setting Die.

The same 22L / 14 mm / 0.55 in size group may be suitable for fabric covering, but shank buttons and snap buttons have different reverse-side structures and final installation systems.

Can It Be Used for Fabric-Covered Snap Buttons?

Yes. This die can be used to cover the cap of a compatible fabric-covered snap button with fabric.

It does not install the working snap closure. Fabric-covered snap buttons use a different closure and assembly system. After covering, the cap must be joined to the matching socket and other compatible snap components with a separate Snap Setting Die.

A matching nominal size alone does not confirm complete compatibility. Check the cap shape, socket construction, snap system and final setting die together before production.

Use with Fabric-Covered Shank Buttons

The primary verified application is 22L fabric-covered shank-button production. After covering, the finished button has an approximate visible diameter of 14 mm / 0.55 in and can be sewn onto garments or accessories through its rear shank.

Use the die with a compatible 22L fabric-covered shank-button blank. Choose fabric thickness, wrapping allowance and press pressure according to the actual component shape and desired finish.

Fabric Preparation

The fabric blank should not be cut to the same diameter as the finished button or cap. It needs enough allowance to wrap around the component without exposed edges, irregular folds or excessive material bulk at the back.

Use a verified cutting template or matching cutting die for the 22L system where available. Do not assume that a cutting die designed for another button size is suitable merely because the diameters appear close.

Suitable Applications

• Tailored shirts, blouses, dresses and children’s garments
• Boutique and made-to-measure production
• Vests, cardigans and lightweight jackets
• Fabric-covered snap closures for garments and accessories
• Bags, textile covers and decorative accessories
• Home textiles, cushions and craft projects
• Sampling and small-batch workshop production

Press Compatibility

This die can be used with compatible manual hand presses, lever-operated impact machines and suitable assembly equipment when the physical die-holder and press connections are confirmed.

Use controlled pressure. Excessive force can distort the component shape or damage some fabrics. Insufficient force can leave uneven fabric tension or loose edges around the covered component.

Application Order for Shank Buttons

1. Select the compatible 22L shank-button blank and covering fabric.
2. Prepare the fabric with enough wrapping allowance.
3. Position the fabric evenly over the button blank.
4. Place the component into the covering die in the correct orientation.
5. Apply controlled pressure with a compatible press.
6. Check the completed button for folds, shifting fabric or uneven tension.

Application Order for Fabric-Covered Snap Caps

1. Select a snap cap compatible with the covering-die geometry.
2. Prepare fabric with sufficient allowance around the cap.
3. Cover the snap cap with fabric using this die.
4. Inspect the covered cap for an even, clean finish.
5. Match the cap with compatible socket and snap components.
6. Complete final snap assembly with a separate matching Snap Setting Die.
7. Test closure strength, fabric deformation and system performance before production.

Frequently Asked Questions

Can this die be used for fabric-covered snap buttons?

Yes. It can cover the outer snap cap with fabric. However, it does not install the snap mechanism. Final cap-and-socket assembly requires a separate compatible Snap Setting Die.

Does this die complete the snap closure?

No. It performs the fabric-covering stage only. The final working snap closure requires a different setting and assembly process.

Can it be used for fabric-covered shank buttons?

Yes. Its main use is covering compatible 22L shank-button blanks to approximately 14 mm / 0.55 in finished size.

Does the same 22L size guarantee full snap compatibility?

No. The cap shape, socket construction, snap system and final setting die must be checked separately.

Do I need a fabric-cutting die?

A verified cutting die or controlled cutting template is recommended to create the correct fabric allowance and support repeatable results.

Can it be used with a manual hand press?

Yes, when the die holder and press connection are physically compatible.
