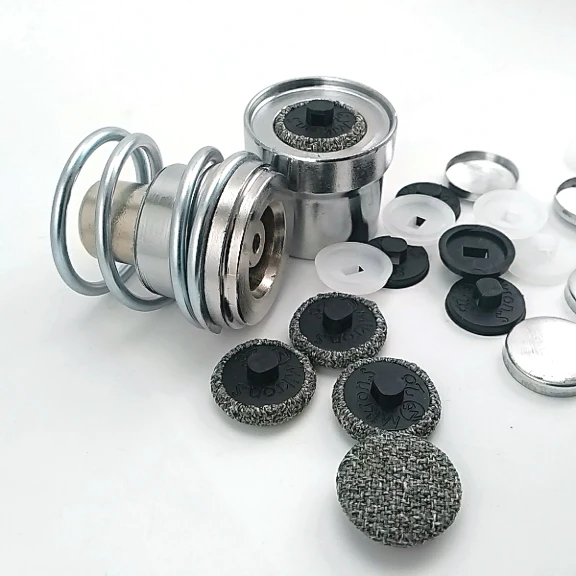

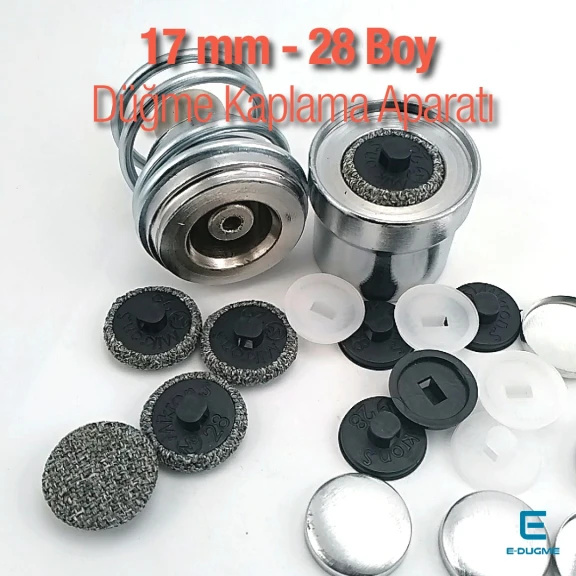

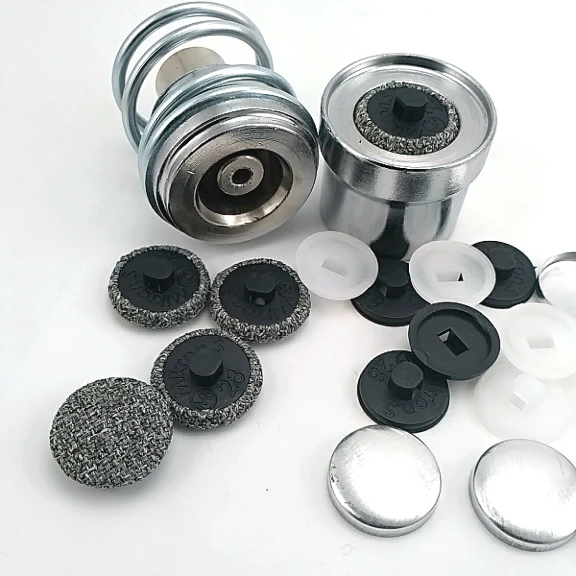

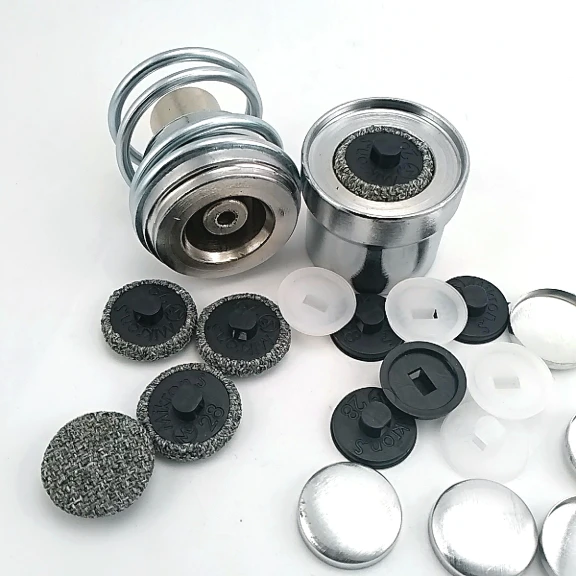

28L / 17 mm / 0.67 in Fabric Button Covering Die for Sew-Through Shank Buttons and Snap Caps KLP0028KPL

What Is a 28L Fabric Button Covering Die Used For?

This 28L Fabric Button Covering Die is used during the fabric-covering stage of compatible sew-through shank buttons and fabric-covered snap caps. It helps the fabric sit more evenly around the visible face, supporting cleaner edges, controlled fabric tension and more repeatable results in tailoring, garment production and workshop applications.

This product is a covering die, not a finished button, snap fastener or final Snap Setting Die. It prepares the fabric-covered component before the final application method is completed.

Two Compatible Fabric-Covering Uses

• Fabric-covered sew-through shank buttons: The covered component is used as a sew-on button through the rear shank structure.
• Fabric-covered snap caps: The outer cap is covered with fabric first. It is then joined to the matching socket and snap components with a separate Snap Setting Die.

The same 28L / 17 mm / 0.67 in size group can be suitable for the fabric-covering stage, but shank buttons and snap buttons have different rear-side structures and different final installation systems.

Can It Be Used for Fabric-Covered Snap Buttons?

Yes. This die can be used to cover the cap of a compatible fabric-covered snap button with fabric.

It does not install the working snap closure. Fabric-covered snap buttons use a different fastening and assembly system. After the cap is covered, it must be assembled with the matching socket and other compatible snap components using a separate cap-and-socket Snap Setting Die.

A matching nominal size alone does not confirm complete snap compatibility. Confirm the cap shape, socket construction, snap system and final setting die together before production.

Use with Sew-Through Shank Buttons

The verified main application is 28L fabric-covered sew-through shank-button production. After covering, the finished button has an approximate visible diameter of 17 mm / 0.67 in and can be sewn onto garments or accessories through its rear attachment structure.

Use the die with a compatible 28L fabric-covered sew-through shank-button blank. Select the covering fabric and pressing force according to the actual component form and desired finish.

Why a Matching Fabric-Cutting Die Matters

The fabric blank should not be cut to the same diameter as the finished button or cap. It needs enough allowance to wrap around the component without exposed edges, irregular folds or excessive material bulk around the reverse side.

Use a matching 28L fabric-cutting die to create more consistent fabric blanks for repeated work. Sample-test velvet, stretch fabric, thick fabric, textured textiles and layered constructions before production.

Suitable Applications

• Tailored jackets, coats, dresses and skirts
• Boutique and made-to-measure garments
• Vests, cardigans and decorative outerwear details
• Fabric-covered snap closures for garments and accessories
• Bags, textile covers and decorative accessories
• Home-textile, cushion and craft projects
• Sampling and small-batch workshop production

Press Compatibility

This die can be used with compatible manual hand presses, lever-operated impact machines and suitable assembly equipment when the physical die-holder and press connections are confirmed.

Use controlled pressure. Excessive force can distort the button or cap shape and damage some fabrics. Insufficient force can leave uneven fabric tension or loose edges around the covered component.

Application Order for Sew-Through Shank Buttons

1. Select the compatible 28L shank-button blank and covering fabric.
2. Prepare the fabric with enough covering allowance.
3. Position the fabric evenly over the button blank.
4. Place the component into the covering die in the correct orientation.
5. Apply controlled pressure with a compatible press.
6. Check the completed button for folds, shifting fabric or uneven tension.

Application Order for Fabric-Covered Snap Caps

1. Select a 28L snap cap compatible with the covering-die geometry.
2. Prepare the fabric with sufficient allowance around the cap.
3. Cover the snap cap with fabric using this die.
4. Inspect the covered cap for an even, clean finish.
5. Match the cap with compatible socket and snap components.
6. Complete the snap assembly with a separate matching Snap Setting Die.
7. Test closure strength, material deformation and system performance before production.

Before Ordering

• This is a fabric-covering die, not a finished button, snap fastener or final Snap Setting Die.
• Its main use is 28L / 17 mm / 0.67 in fabric-covered sew-through shank-button production.
• It can also cover compatible fabric-covered snap caps.
• A separate Snap Setting Die is required for final snap closure assembly.
• Do not select a final snap-setting tool by nominal size alone.
• Check cap geometry, socket structure, snap system and press connection together.
• Test the selected fabric and actual components before production.

Frequently Asked Questions

Can this die be used for fabric-covered snap buttons?

Yes. It can cover the outer snap cap with fabric. However, it does not install the snap mechanism. Final cap-and-socket assembly requires a separate compatible Snap Setting Die.

Does this die complete the snap closure?

No. It performs the fabric-covering stage only. Snap buttons use a different fastening and assembly system for the final closure.

Can it also be used for fabric-covered shank buttons?

Yes. Its primary use is covering compatible 28L sew-through shank-button blanks to approximately 17 mm / 0.67 in finished size.

Does the same 28L size guarantee full snap compatibility?

No. The cap shape, socket construction, snap system and final setting die must be checked separately.

Do I need a fabric-cutting die?

A matching fabric-cutting die is recommended to prepare the correct fabric allowance and achieve more repeatable results.

Can it be used with a manual hand press?

Yes, when the die holder and press connection are physically compatible.
