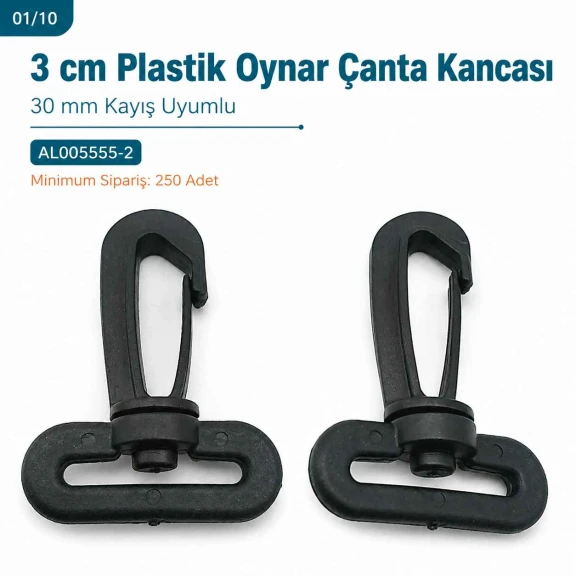

30 mm Plastic Swivel Bag Hook – For 1.18 in Webbing AL005555-2

Plastic Swivel Bag Hook for 30 mm Webbing

This plastic swivel bag hook is designed to create a detachable strap connection on bags, backpacks, carrying cases and textile accessories.

The swivel joint allows the webbing attachment section to change direction relative to the hook body. This can help removable shoulder straps sit more naturally as the bag changes position during use.

Compatible Webbing

The hook is intended for 30 mm / approximately 1.18 in webbing. The reference webbing specification is 30 × 4 mm / approximately 1.18 × 0.16 in.

Actual webbing thickness and construction can vary, so compatibility should be tested with the exact webbing used in production.

Product Dimensions

The overall dimensions are approximately 38 × 58 mm / 1.50 × 2.28 in.

Product thickness is approximately 5.8 mm / 0.23 in.

The 30 mm designation refers primarily to compatible webbing width rather than the overall size of the component.

Swivel Connection

The swivel connection allows the strap attachment section to change direction relative to the hook body. This can provide a more flexible connection than a completely fixed strap hook.

The exact rotation angle has not been verified and should not be described as a confirmed 360-degree swivel.

Typical Applications

• Bag shoulder straps
• Backpacks
• Carrying cases
• Protective cases
• Detachable strap systems
• Lightweight textile accessories
• Bag manufacturing
• Prototype and production projects

Installation

Pass the webbing through the strap attachment section and secure it according to the finished product design, typically by folding and sewing or another appropriate fastening method.

The hook can then be connected to a compatible D-ring or other mating ring. Confirm that the hook closes completely and that the swivel section operates without binding.

No dedicated setting die or press is specified for the hook itself.

D-Ring Compatibility

Webbing width is not the only compatibility factor. The section thickness of the D-ring or mating ring should also be checked.

An excessively thick ring may prevent the hook from closing correctly. Test the actual hardware combination before production.

Choosing the Correct Hook

The main selection criterion is the width of the webbing or strap. This model is intended for the 30 mm class.

Narrower webbing may fit loosely, while wider or thicker webbing may not fit correctly through the attachment section.

25 mm vs. 30 mm Version

This model belongs to the 30 mm / 1.18 in webbing class. The AL005555-1 model is intended for 25 mm / 0.98 in webbing.

Plastic vs. Metal Hardware

Plastic construction can provide a lighter connection than metal hardware. However, its load performance should not be assumed to match tested metal hardware.

For load-bearing bag applications, prototype and load testing with the actual webbing, hook and mating ring is recommended.

Safety Limitations

This product is intended as bag and textile hardware. It is not suitable for climbing, human support or other life-safety applications.

Package Contents

The order includes the selected quantity of plastic swivel bag hooks.

Webbing, D-rings, strap adjusters, sewing materials and other accessories are not included.

Minimum Order Quantity

The minimum order quantity is 250 pieces.
