30 mm Plastic Swivel Cup-Style Bag Hook – For 1.18 in Webbing AL005552

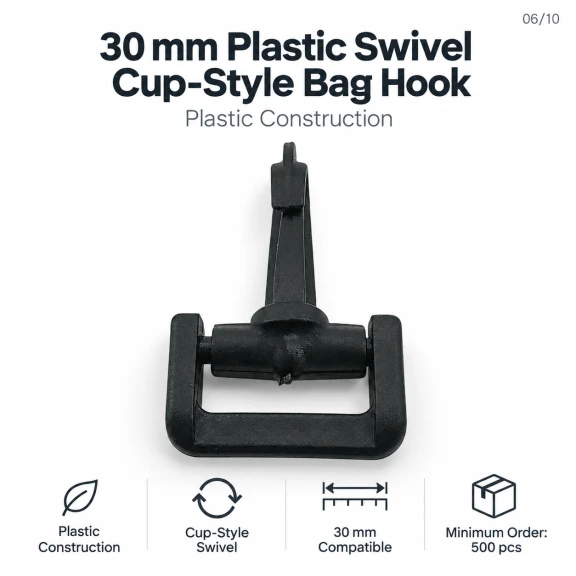

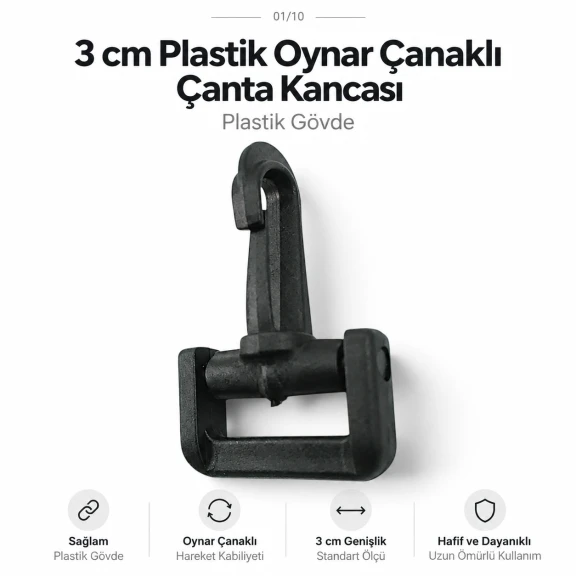

Plastic Swivel Cup-Style Bag Hook for 30 mm Webbing

This plastic swivel cup-style bag hook is designed to create a detachable strap connection on shoulder bags, backpacks, waist bags, sports bags, travel products and textile accessories.

Its cup-style movable connection allows the webbing attachment section to change direction relative to the hook body. This can help the strap move more naturally around the connection point and reduce twisting during use.

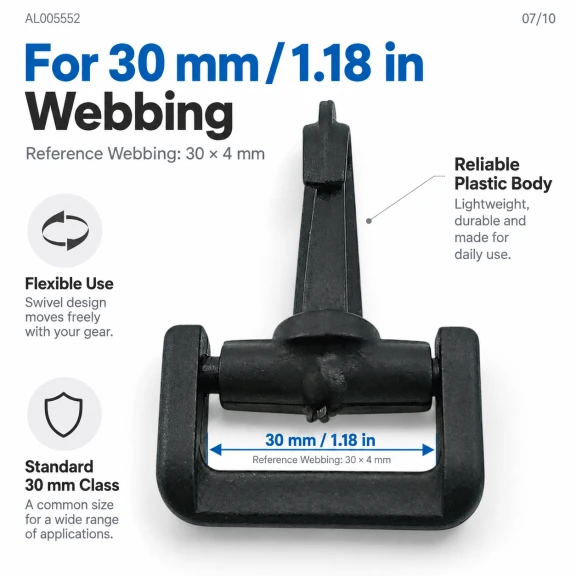

Compatible Webbing

The product is intended for 30 mm / approximately 1.18 in webbing. The reference webbing specification shown for the product is 30 × 4 mm / approximately 1.18 × 0.16 in.

Actual webbing thickness and construction may vary, so physical compatibility should be tested with the exact webbing intended for production.

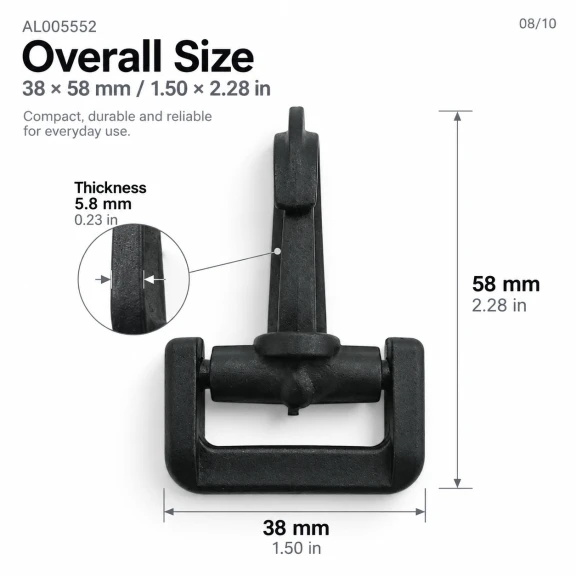

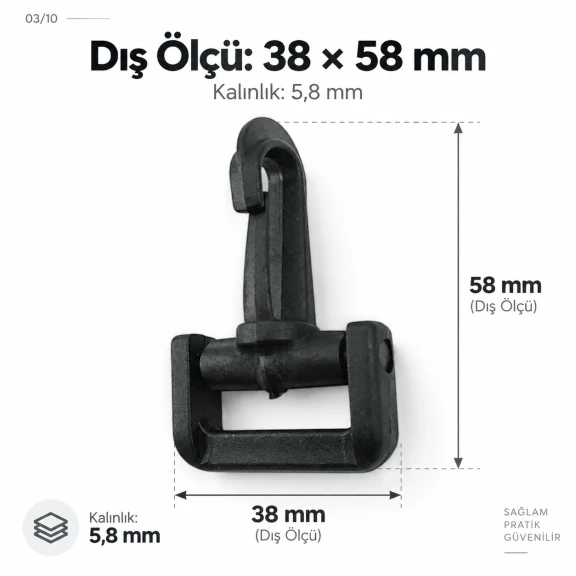

Product Dimensions

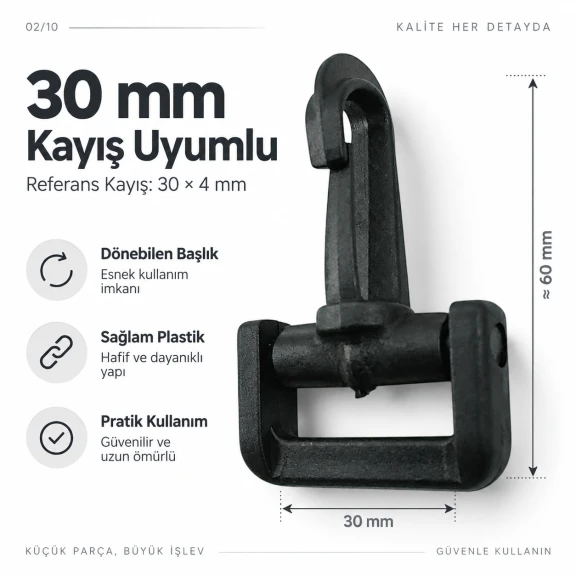

The overall product dimensions are approximately 38 × 58 mm / 1.50 × 2.28 in.

Product thickness is approximately 5.8 mm / 0.23 in.

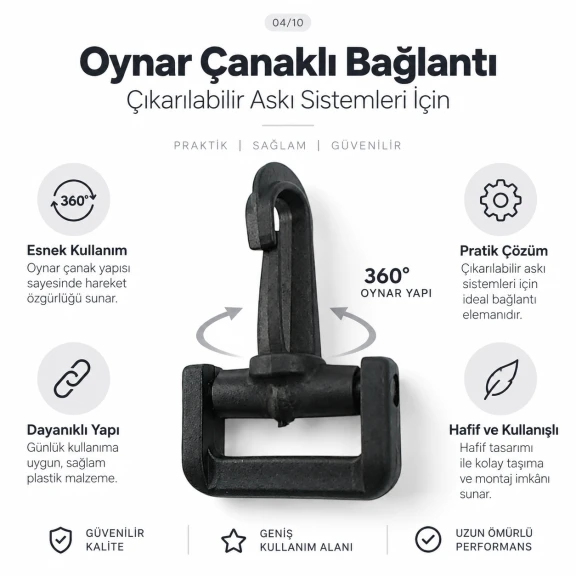

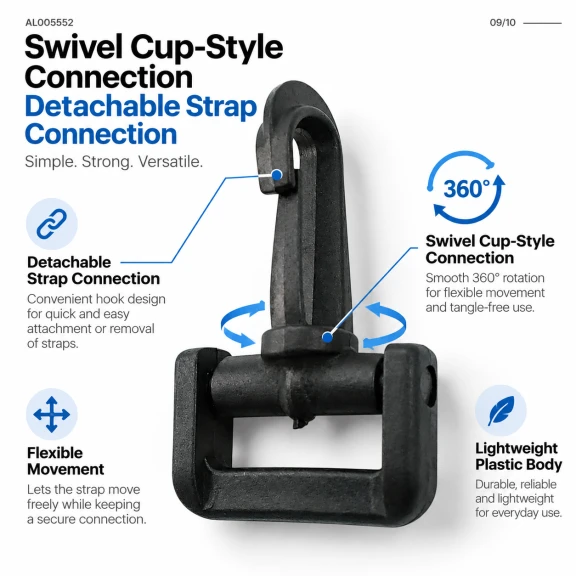

What Does Swivel Cup-Style Mean?

The cup-style movable joint allows the webbing attachment section to change direction relative to the hook body.

This provides more freedom of movement than a completely fixed strap connection and can be useful on detachable shoulder straps.

The exact movement angle has not been verified and should not be described as a confirmed 360-degree rotation.

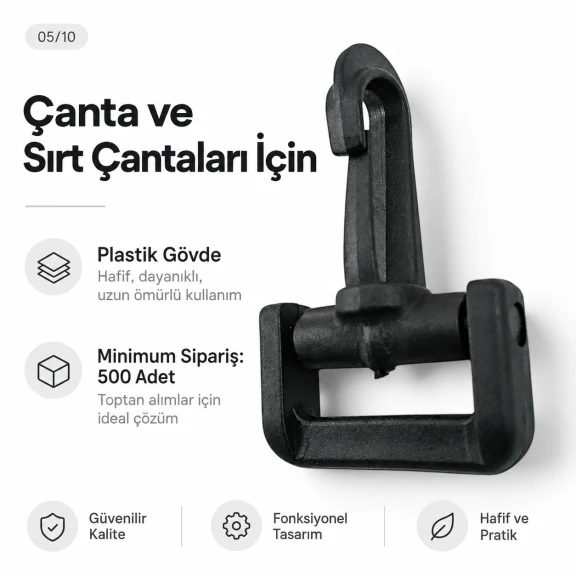

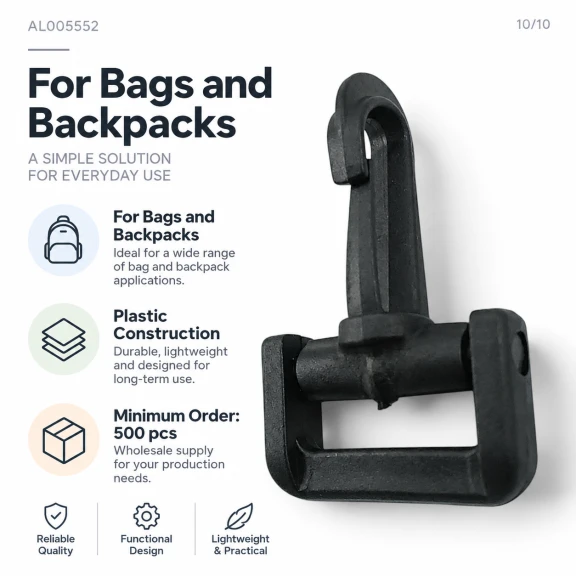

Typical Applications

• Shoulder bags
• Backpacks
• Waist bags
• Sports bags
• Travel bags
• School bags
• Promotional bags
• Cases and textile accessories
• Detachable strap systems

Installation

Pass the 30 mm-class webbing through the strap attachment section and secure it according to the finished product design.

The hook can then be attached to a compatible D-ring or frame ring. Confirm that the hook closes fully and that the cup-style movable connection operates without binding.

No dedicated setting die or press is required for the hook itself.

D-Ring Compatibility

The section thickness and geometry of the mating D-ring or frame ring should also be checked. A ring that is too thick may prevent the hook from closing completely.

Always test the actual hook, webbing and ring combination before production.

30 mm vs. Other Sizes

This model is intended for the 30 mm webbing class. A 25 mm model should be selected for narrower straps, while a 40 mm model should be selected for wider strap systems.

AL005552 vs. AL005552A

These are different products. AL005552 is the swivel cup-style bag hook, while AL005552A is a separate 30 mm plastic D-ring.

Choosing the Correct Component

Check actual webbing width, thickness, weave structure and the thickness created where the strap is folded and sewn.

A physical sample using the actual webbing and hardware is recommended before bulk production.

Plastic vs. Metal Hardware

Plastic construction can provide a lighter alternative to metal hardware. Load performance should not be assumed to be equivalent to a metal hook without testing.

Safety Limitations

This product is intended as bag and textile hardware. It must not be used for climbing, human support or life-safety applications.

Package Contents

The order contains the selected quantity of plastic swivel cup-style bag hooks.

Webbing, D-rings, adjusters and other strap hardware are not included.

Minimum Order Quantity

The minimum order quantity is 500 pieces.
