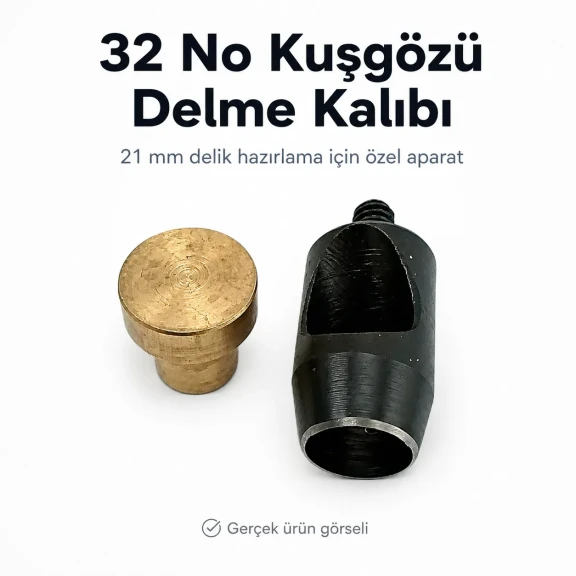

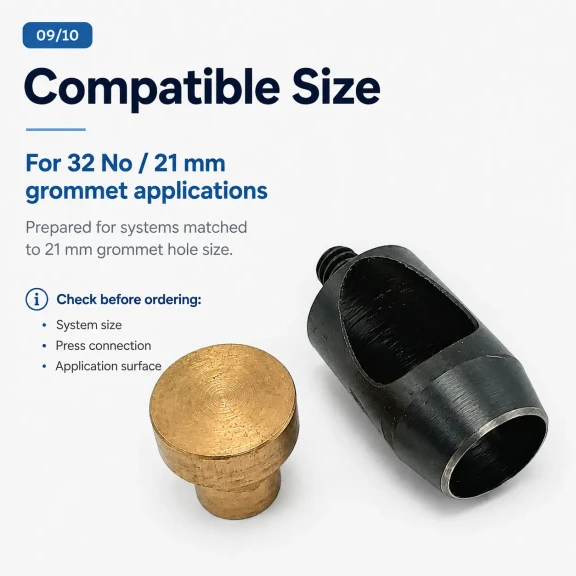

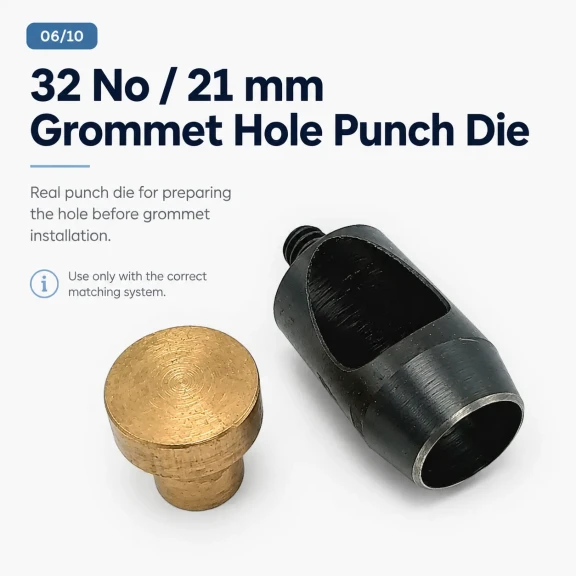

21 mm / 0.83 in Eyelet Punching Die KLP0032DEL

Dedicated Hole Preparation for 21 mm Flat Brass Eyelets

This Grommet Punching Die is produced for use before installing the 21 mm / 0.83 in flat brass eyelet. It helps prepare the required round opening on tarpaulins, curtains, tents, awnings, banners, canvas and suitable technical textile surfaces.

The matching eyelet has a 31.8 mm / 1.25 in outer diameter and a 4.7 mm / 0.19 in barrel height. If you use this specific flat brass eyelet and want to manage hole preparation as a separate, controlled production step, this is the correct tool group to choose.

What Does the Punching Die Do?

The die prepares the opening through which the eyelet barrel will pass. A correctly prepared hole helps the eyelet sit more evenly on the material and supports better alignment during the later setting operation.

This product does not set the eyelet and washer. After punching, a compatible Eyelet Setting Die must be used to complete the installation.

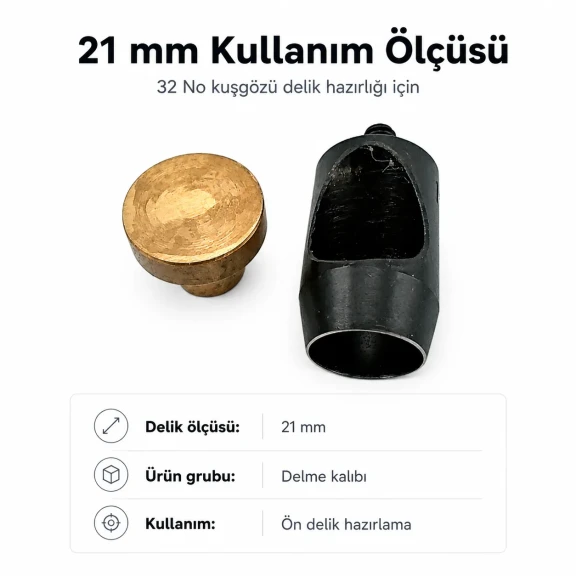

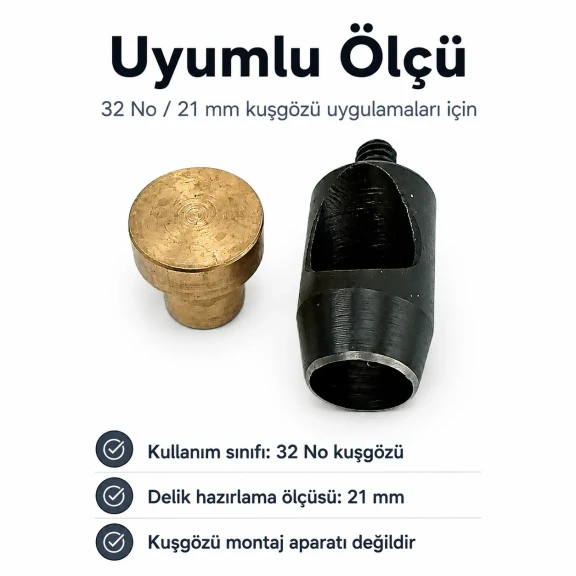

Compatible Eyelet Measurements

• Inner diameter: 21 mm / 0.83 in
• Outer diameter: 31.8 mm / 1.25 in
• Barrel height: 4.7 mm / 0.19 in
• Eyelet material: Brass
• Washer outer diameter: 32 mm / 1.26 in
• Washer inner diameter: 22 mm / 0.87 in
• Washer thickness: 1.2 mm / 0.05 in

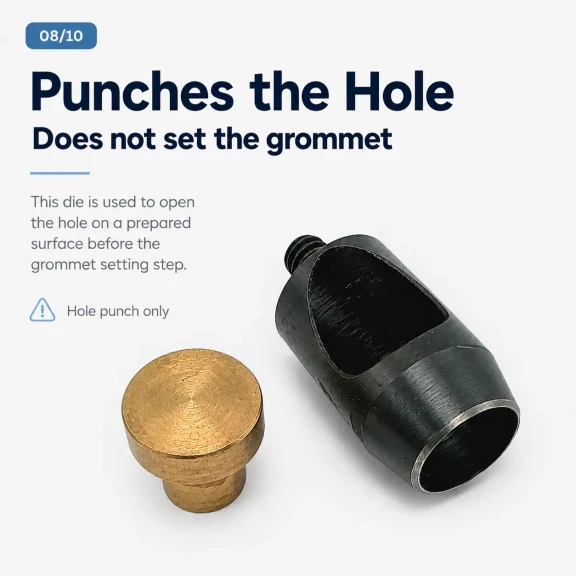

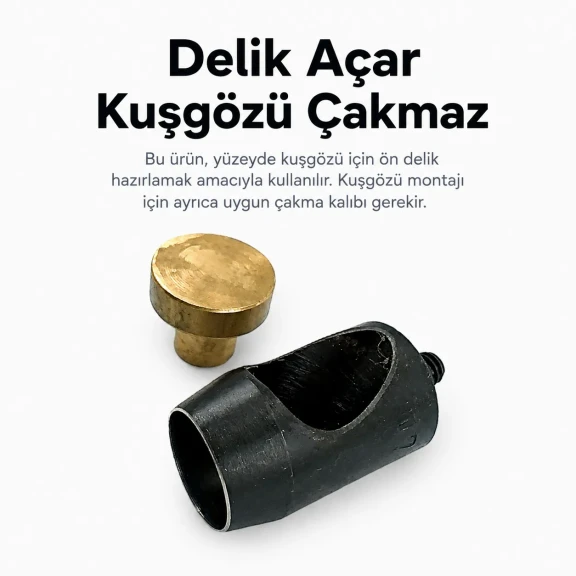

Punching and Setting Are Different Operations

• Grommet Punching Die: Prepares the material hole.
• Eyelet Setting Die: Installs the eyelet and washer into the prepared hole.
• Self-Piercing Eyelet Setting Die: Supports piercing and setting together only with compatible systems.

This tool is a Punching Die. It is not an Eyelet Setting Die and does not perform a self-piercing setting operation. Other hole-preparation sizes can be reviewed under Grommet Punching Dies.

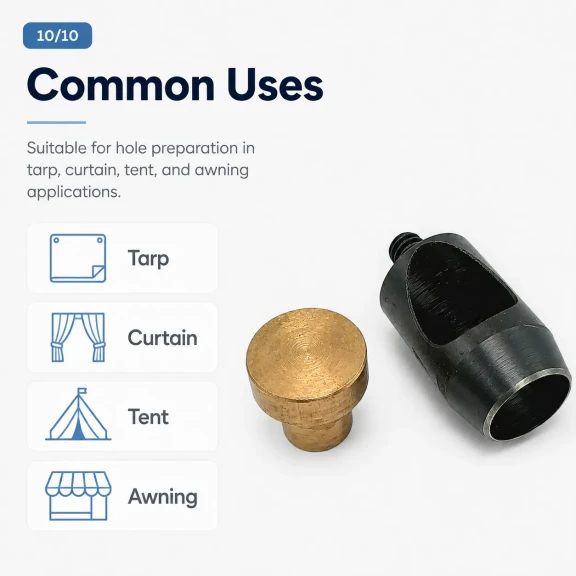

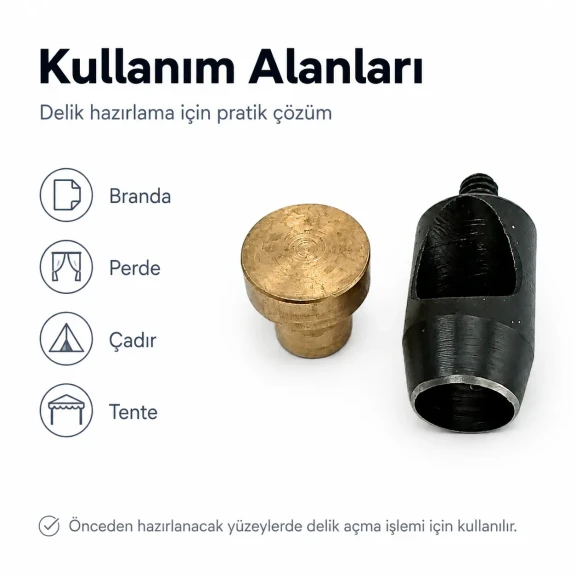

Recommended Applications

• Tarpaulins and truck covers
• Curtains and decorative textiles
• Tents, awnings and shade products
• Banners and vinyl displays
• Canvas and protective covers
• Suitable technical textile surfaces

When Should You Choose This Die?

Choose this die when you are working with the specified 21 mm / 0.83 in flat brass eyelet and require a dedicated tool for preparing the opening before setting. It is especially useful for workshops that repeatedly install large eyelets on tarpaulins, curtains, tents and technical textile products.

Do not select the die only by a local trade size. Actual inner diameter, outer diameter, barrel height and eyelet construction should be checked. Other eyelet profiles can be compared under Flat Brass Eyelets.

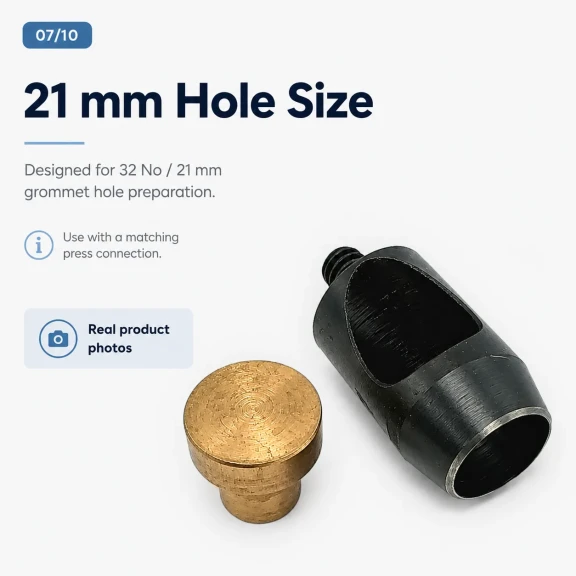

Press and Machine Compatibility

The die connection must match the selected press or punching machine. Compatibility with a particular hand press, impact press, electric machine or pneumatic system should be confirmed before ordering.

Material thickness, coating and number of layers can affect the punching result. Test the actual production material before starting repeat production.

Frequently Asked Questions

Which eyelet is this punching die made for?

It is made for the flat brass eyelet with a 21 mm / 0.83 in inner diameter, 31.8 mm / 1.25 in outer diameter and 4.7 mm / 0.19 in barrel height.

Does this die install the eyelet?

No. It prepares the material hole only. A compatible Eyelet Setting Die is required for installation.

Is it a self-piercing setting die?

No. It is an independent Grommet Punching Die and does not perform the setting operation.

Which materials can be punched?

It can be evaluated for suitable tarpaulin, curtain, tent, awning, canvas, vinyl and technical textile surfaces.

Will it work with every eyelet carrying the same trade size?

Compatibility should not be assumed. Actual dimensions, barrel height and eyelet construction must be checked.

Can it be used with a hand press?

It can be used when the die and press connection standards match. Connection dimensions must be confirmed before ordering.

Are the eyelet and setting die included?

The eyelet and setting die are separate products. The exact punching die package contents must be confirmed before publication.
