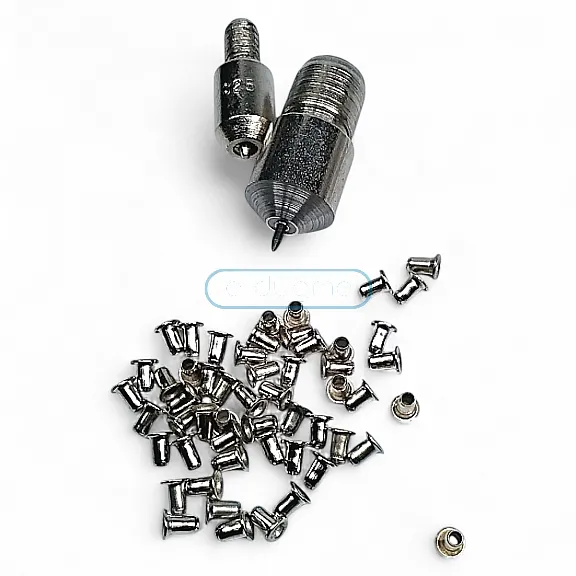

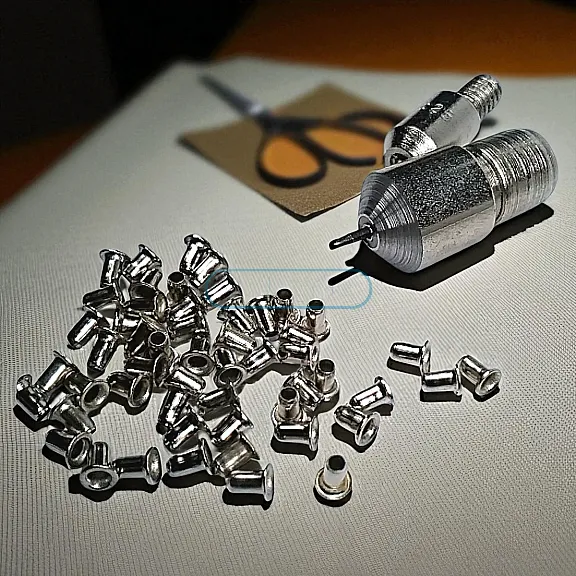

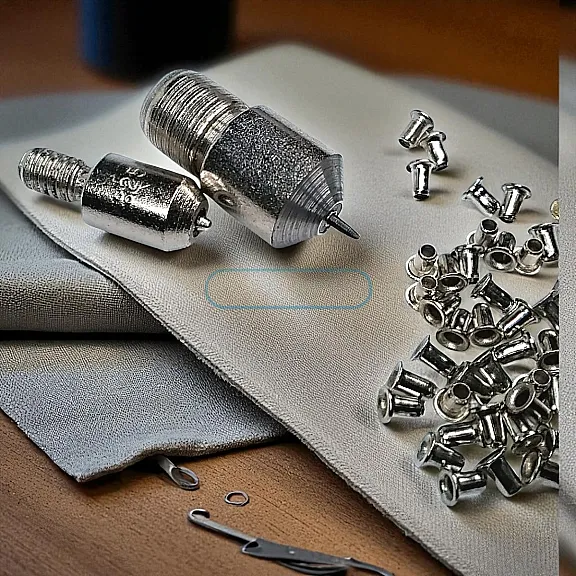

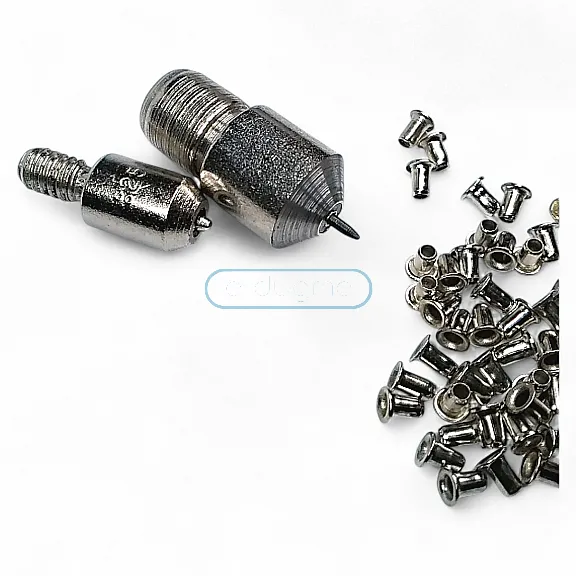

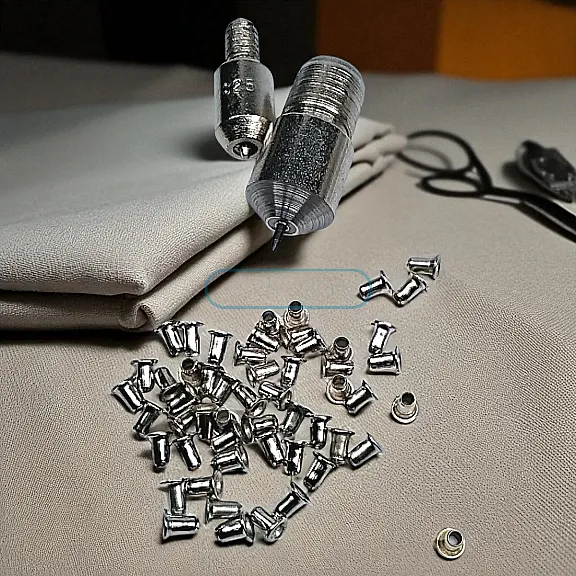

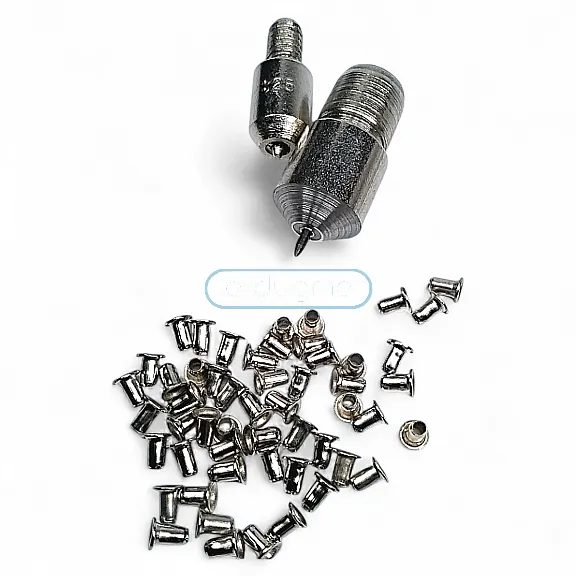

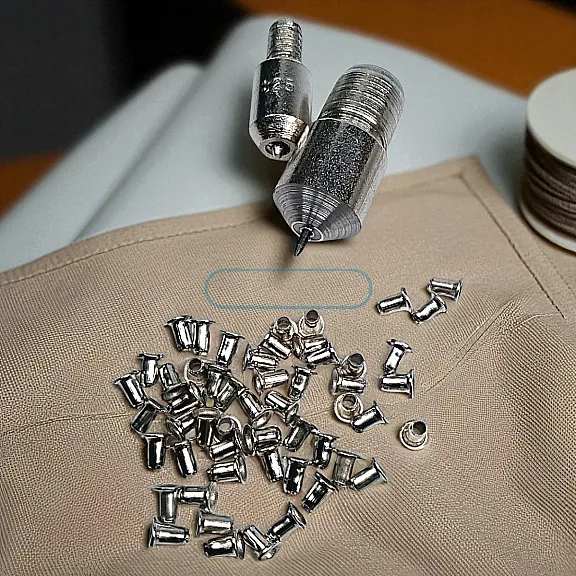

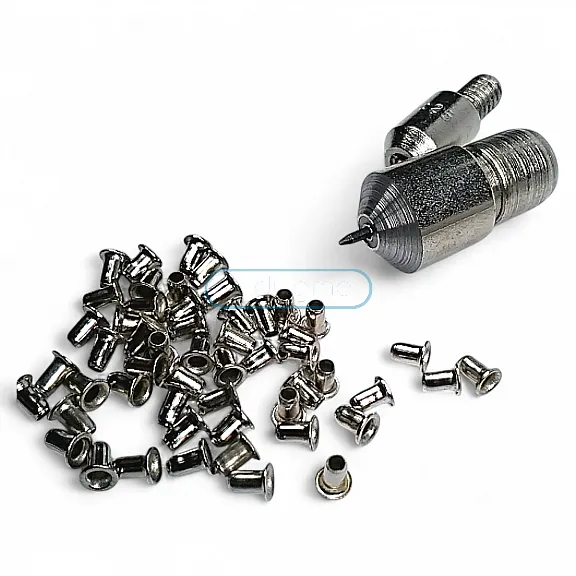

2.5 mm / 0.10 in Pin Setting Die for 25x35 Pins KLP002535

What Is a 2.5 mm / 0.10 in Pin Setting Die Used For?

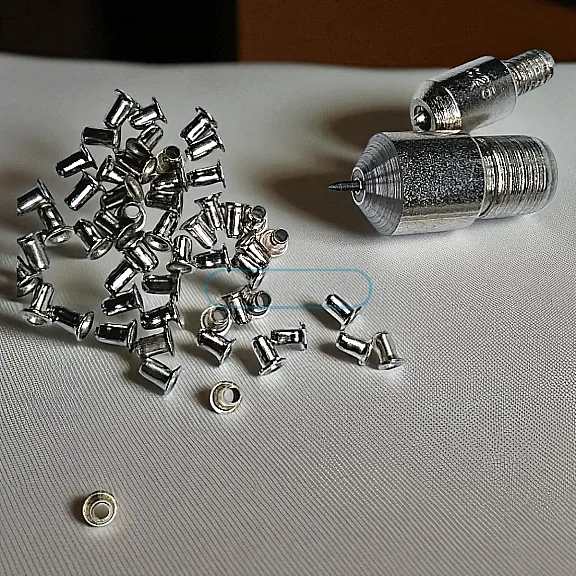

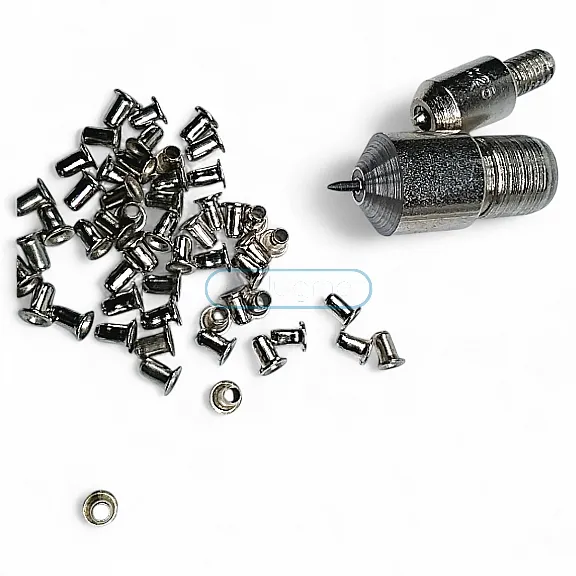

This 2.5 mm / 0.10 in Pin Setting Die is used to install compatible 25x35 pin-group fasteners in a controlled way. It helps the pin sit evenly on leather goods, wallets, small bags, textile accessories, decorative metal details and compact fastening points.

This tool is not a Hole Cutter. It does not create the opening in the material. Its function is to set the pin after the material, pin size and installation method have been selected correctly.

Compatible Pin Group

The product page identifies this setting die for 2.5 mm / 0.10 in pins in the 25x35 group. Use it with the matching steel-pin product only after confirming the pin dimensions, material thickness and required fastening pressure.

The associated pin product is listed with a 2.5 mm / 0.10 in inner diameter, 3.5 mm / 0.14 in outer diameter and 3.2 mm / 0.13 in height. The 25x35 wording identifies the trade size group and should not be treated as an independent length-by-width measurement without a verified technical drawing.

Pin Setting Die vs. Hole Cutter

A Pin Setting Die installs and secures the pin. A Hole Cutter prepares an opening in the material when required. These tools perform different stages of the application process and are not interchangeable.

Whether a pre-hole is needed depends on the actual pin form, material thickness and material firmness. Do not select a hole size only by the pin’s product name.

Typical Applications

• Small leather goods, wallets and card holders
• Leather and synthetic-leather accessory details
• Textile and garment accessory installation
• Decorative metal parts and compact fastening points
• Craft, sampling, repair and small-batch production

Connection and Press Compatibility

The product page references M6 and M8 metric screw support. Select the actual connection according to the press, adaptor and die-holder system being used.

Do not assume that M6, M8 and inch-thread systems are interchangeable because their outside diameters may appear similar. Thread pitch and thread profile can differ. Verify the actual thread standard before selecting a hand press, impact press, electric machine or pneumatic machine.

Application Order

1. Confirm the selected pin and material thickness.
2. Prepare the material only if the selected pin system requires a pre-hole.
3. Position the compatible pin at the intended point.
4. Install the pin with the 2.5 mm / 0.10 in Pin Setting Die.
5. Check that the pin is seated evenly and that the material has not been crushed or damaged.

Before Ordering

• This is a Pin Setting Die, not a Hole Cutter.
• Use it only with the compatible 2.5 mm / 0.10 in pin group.
• Confirm the pin dimensions, material thickness and required fastening pressure.
• Check the actual M6 or M8 connection required by your press or die holder.
• Test the pin, material and pressure on a sample before production.
• Hand tools, presses, adaptors and pins are not included unless separately selected.

Frequently Asked Questions

What is this product used for?

It is used to install compatible 2.5 mm / 0.10 in pins in the 25x35 pin group.

Does this tool punch the material?

No. This is a Pin Setting Die. It installs the pin; it does not create the hole.

Which pin should be used with this setting die?

Use the matching 2.5 mm / 0.10 in steel pin in the 25x35 group after confirming the pin and material specifications.

Can it be used with a manual hand press?

Yes, when the die connection and press connection are compatible. The product page references M6/M8 metric connection support, which should be checked against the actual equipment.

Are M6 and M8 connections interchangeable?

No. They are different thread sizes. Check the actual die-holder or press thread standard before installation.

Is the pin included with this tool?

No. Pins, presses and other application equipment should be selected separately unless explicitly included in the order.
