Bandolier Buckle 2 cm / 0.79 in Snap-On Plastic Buckle Special Production H009074SPC

Special Production Plastic Side-Release Buckle for 20 mm Webbing

This 2 cm / 0.79 in plastic side-release bandolier buckle is used to connect and release strap systems in bags, outdoor equipment, technical textile products, workwear, promotional products and functional textile accessories. The side-release locking mechanism creates a practical open-and-close fastening point for webbing-based products.

The buckle is designed for 2.02 cm / 20 mm webbing. The verified locked outside length is 56.6 mm / 2.23 in, and the outside width is 28.2 mm / 1.11 in. Before production, the webbing width, thickness and weave structure should be checked to make sure the strap passes through the buckle correctly and locks securely.

For Bags, Outdoor Gear and OEM Textile Projects

This product belongs to the Bag Buckles, Rings and Hooks product family. Similar fastening hardware can be compared under side-release buckles and slide adjusters according to webbing width, buckle shape and final use.

This buckle is not primarily a strap-length adjustment part. It is used to open and close the strap system. If strap length also needs to be adjusted, a matching ladder buckle or strap adjuster should be used with the same webbing width. If a fixed connection point is needed, a D ring or O ring should be selected according to the final strap layout.

Why This Buckle Works Well for Custom Production

• Fits 2.02 cm / 20 mm webbing.
• Side-release mechanism provides fast opening and closing.
• Lightweight plastic body for bags, outdoor gear and textile products.
• Black and white options are shown on the product page.
• Custom colors can be produced upon order.
• Suitable for OEM projects, promotional products and bulk production.

How to Choose the Right Buckle

The key selection point is webbing compatibility. This model should be selected for 20 mm webbing. If the strap is too narrow, it may move inside the buckle; if it is too wide, too thick or too rigid, it may not pass through smoothly. Testing the actual webbing before bulk production is recommended for outdoor, workwear and technical textile applications.

For the same size class, the standard 2 cm / 0.79 in plastic bandolier buckle can be compared. If a wider special production buckle is required, the 2.5 cm / 1 in special production plastic side-release buckle can be selected. If a metal buckle body is preferred, 2 cm / 0.79 in zamak palaska buckle models can be checked.

Common Questions Before Ordering

Which webbing width does this buckle fit?

It fits 2.02 cm / 20 mm webbing, commonly used as a 2 cm / 0.79 in strap size.

Is this buckle suitable for custom colors?

Yes. The product page shows black, white and colorful production options. Custom colors should be checked according to order quantity and production conditions.

Is this a strap adjuster?

No. It is a side-release buckle used for fastening. Strap adjustment should be handled with a ladder buckle or strap adjuster.

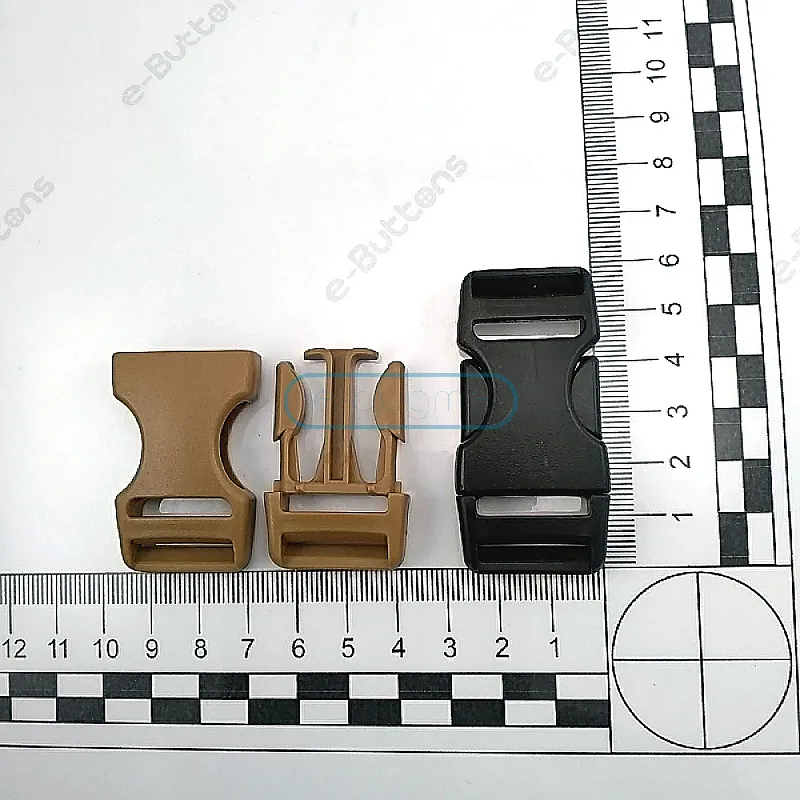

What are the verified dimensions?

The locked outside length is 56.6 mm / 2.23 in, and the outside width is 28.2 mm / 1.11 in.

What material is the buckle made from?

The buckle is made from plastic.

Can it be used for outdoor gear?

Yes. It is positioned for outdoor gear, technical textiles, bags and OEM strap systems. The actual webbing should be tested for fit before bulk production.
